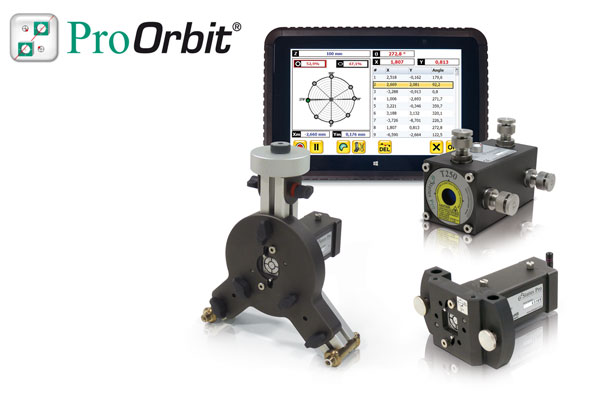

Bore Alignment with ProOrbit®




System for measuring bores or aligning bearing ways.



The System offers:

  • Wireless transmission of x, y and rotation angle from the receiver
  • Automatic connection management, wireless via Bluetooth
  • Two-point, four-point or n(!)-point bore centre detection for circular fits
  • High resolution up to 1µm
  • Flexible application from 60 mm up to several meters
  • T250 laser adjustable in offset and angle!
  • Superb user interface: Practical and ergonomic
  • Colour Touchscreen UMPC, rugged and light
  • Reports and measured data can be stored on USB, W-LAN.
  • Automatic calculation of the best reference

Applications

The straightness or linearity of the bore centers is a critical issue not only for Diesel motor and compressor manufacturers but also for in ship building and machine repair. This measurement is often performed in a difficult and close environment. It is essential that the bracketing is very flexible in setup and convenient in use.


It is often useful to measure the roundness of the bore also. The ProOrbit Software was defined, field tested and modified by practitioners in the field so that it fulfills these expectations. Similarly the bracketing is unique in its practicality.

Motors

bearing ways

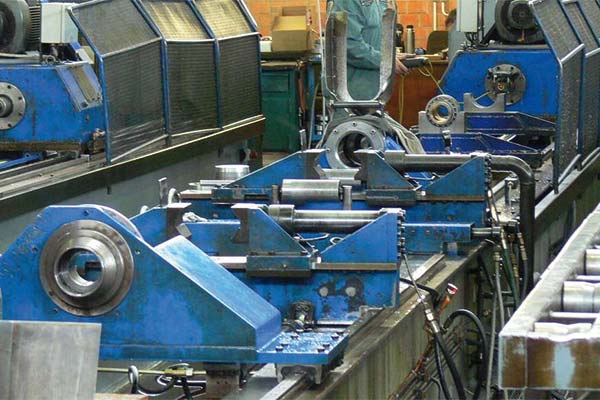

deep hole drilling

deep hole drilling

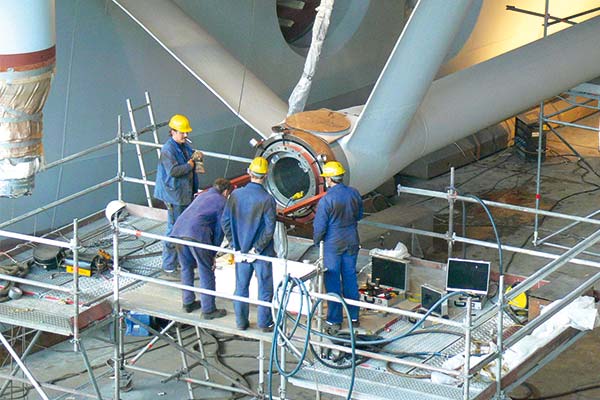

stern tubes

stern tubes

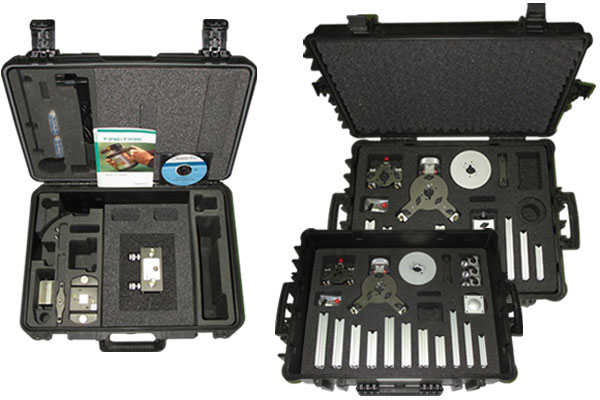

Alignment Packages

ProOrbit 10

Starter Package

Basis-Vermessungspaket für Lagergassen und Bohrungen

Deutsch      PC_ProOrbit10_1025_D
english      PC_ProOrbit10_1025_E

ProOrbit 20

Professional Package

Profi-Vermessungspaket für Lagergassen und Bohrungen

Deutsch      PC_ProOrbit20_1036_D
english      PC_ProOrbit20_1036_E

ProOrbit 30

Profesional Package
with IT

Profi-Vermessungspaket mit IT für Lagergassen und Bohrungen

Deutsch      PC_ProOrbit30_1045_D
english      PC_ProOrbit30_1045_E

Mounting Accessory

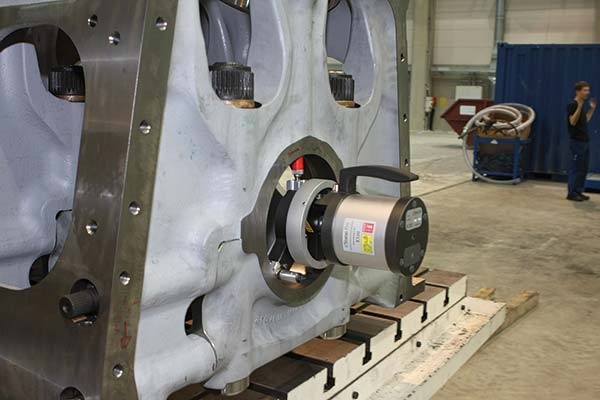

mounting example

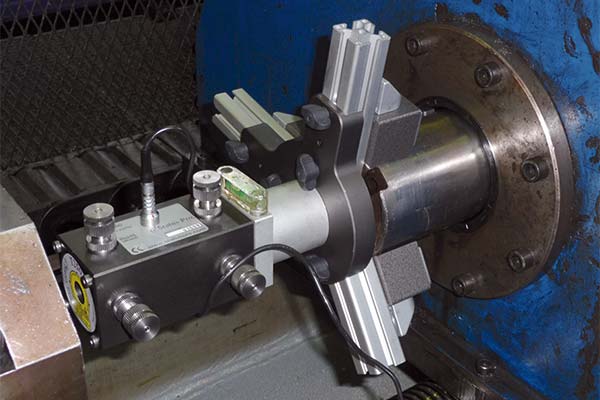

System mounting for Bearing Ways and Bores



Titel Borealign Kit

The complete system for measuring bore-holes, SP BOREALIGN, consists of several modular components. When correctly combined, the system components allow a measuring diameter range from as small as 60 mm to virtually any size diameter.



   User Guide BoreAlign Kit

Service

Field Measurement

Service

Over the past 20 years Status Pro has developed a great deal of experience in industrial geometrical measurement. The nature of the business is that the measurement and alignment applications are spread across a wide range of industries.

The team and qualifications:
We have qualified industrial surveyors, mechanical engineers, vibration and alignment specialists in our service team.

Field Measurement Examples :

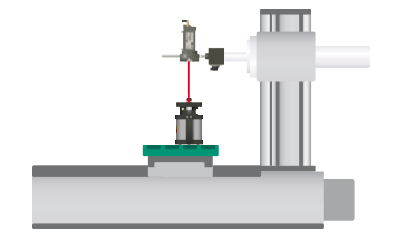

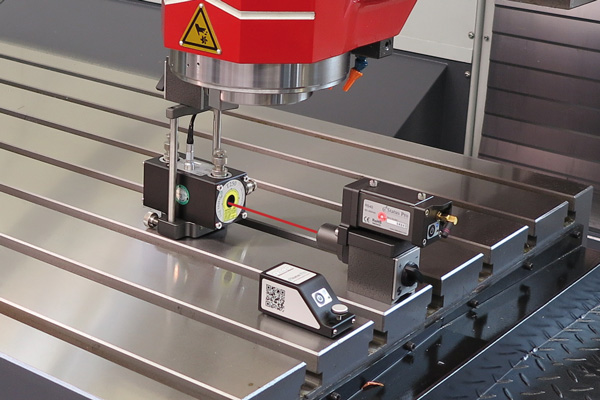

Messung von GeradheitStraightness

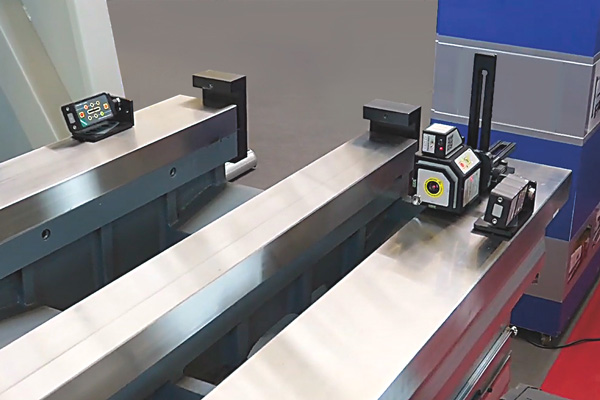

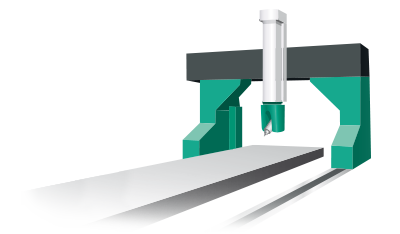

Messung von ParallelitätenParallelism
Messung der PositionierungPositioning

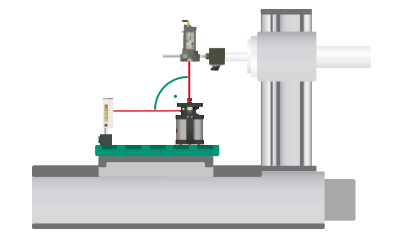

Messung von RechtwinkligkeitSquareness

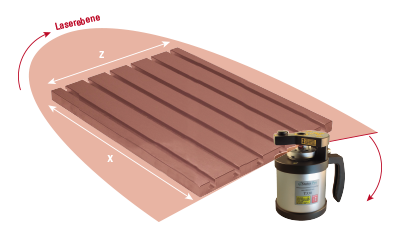

Messung von EbenheitFlatness
